Color Well Log Printing Just Got Easier with the Ease of Mobility!

Developed for the unique requirements of the Geological and Geophysical industries, the iTerra Lite is a mobile printer that advances the quality of well log and chart printing with the introduction of high resolution color.





Fanfold Well Log Printer for the Office, Field & Offshore

The versatility of this product is virtually unmatched, with this well log printer being capable of fitting in any office environment, rackmounted directly in trucks used in the field or placed in control rooms offshore. This resilient plotter is field ready for the demands of the well logging environment. Ready for use in either rackmount or desktop style, this machine has superior well log plotter functions, a user friendly interface and is next to effortless to maintain.

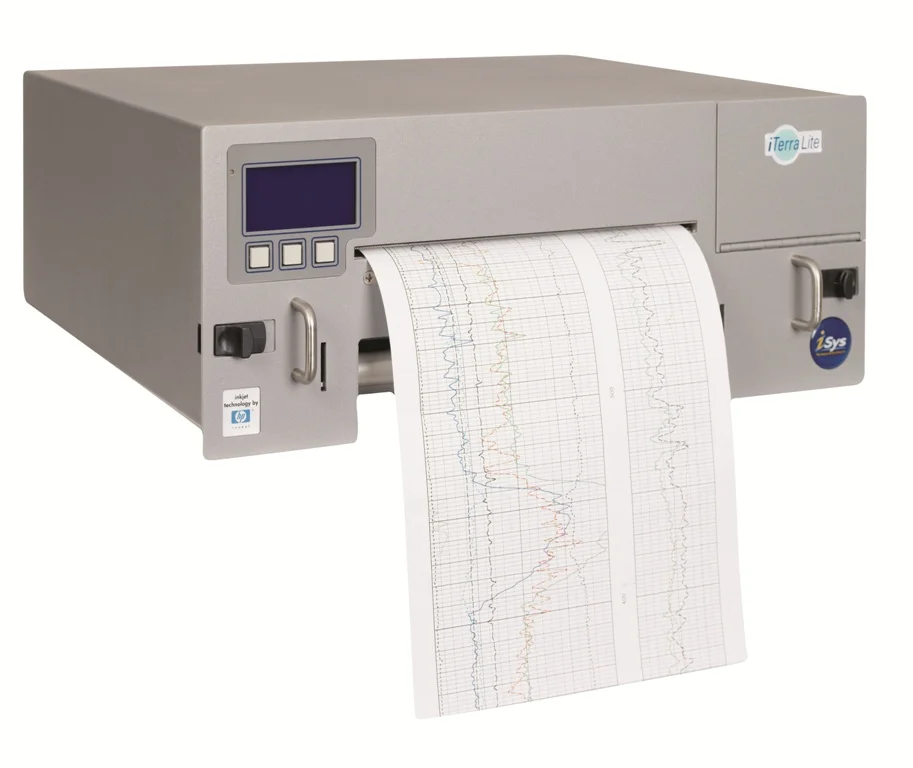

iterra lite Desktop model

iterra lite Desktop model

The Basics: What You Need To Know

  • 8.5” Color Inkjet Printer
  • Rackmount or desktop capabilities
  • Print speeds up to 1 IPS (inch per second)
  • Print resolution of 300 x 300 DPI or 600 x 600 DPI
  • Unattended, continuous fanfold front feed and output
  • Field proven
  • Easy to use LCD front operator panel
  • High print resolution
  • Rugged and robust enclosure
  • Built for field of office use
  • Continuous form printing, no limit on the plot length

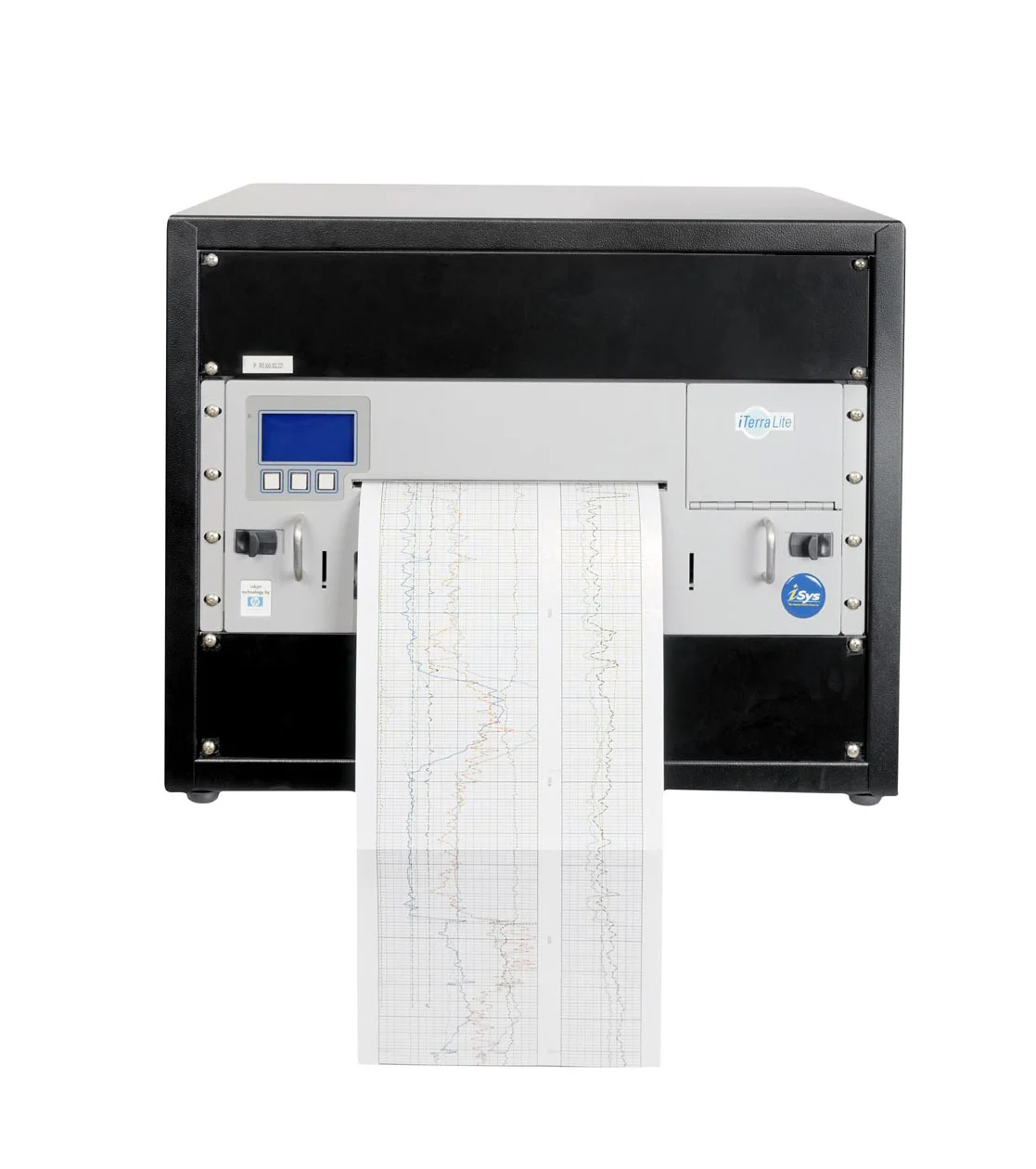

ITERRA LITE rackmount MODEL

ITERRA LITE rackmount MODEL

Features & Benefits

  • The rackmount version fits in a standard 19" (482.6 mm) rack and takes up four vertical units. Other mounting options are available.
  • Utilizing HP color inkjet technology, the iTerra Lite delivers high quality, color well logs in any environment you may need.
  • When it comes to replacing the ink cartridges, you only need to replace the one that is empty - saving money on the cost of unused ink
  • User intervention is minimal. The qualified fanfold paper has a top of form mark that ensures the printer aligns the first page automatically for every job - allowing you to load once and print many.

Accessories & Options

USB Cable

USB Cable.png

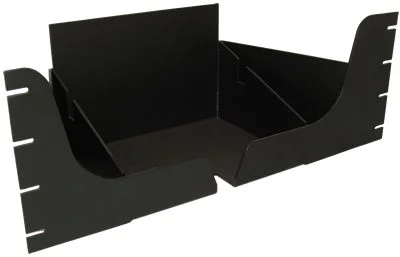

Rack Bottom Input Basket

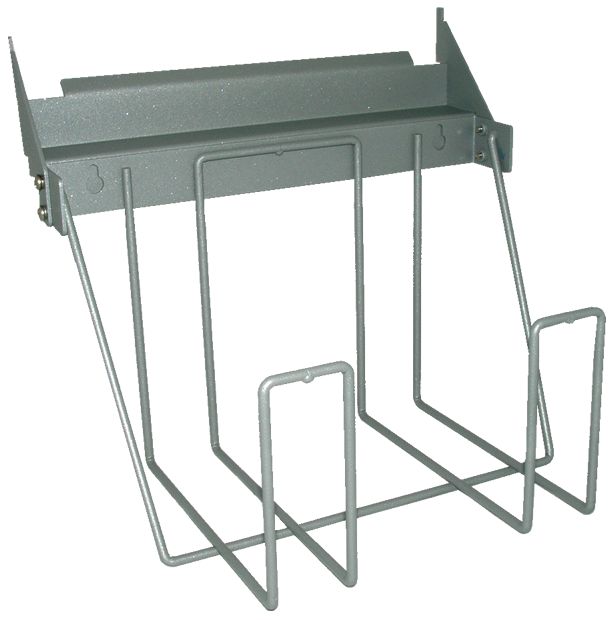

Desk Input Basket

rack bottom input Basket.png
Desk Input Basket.png

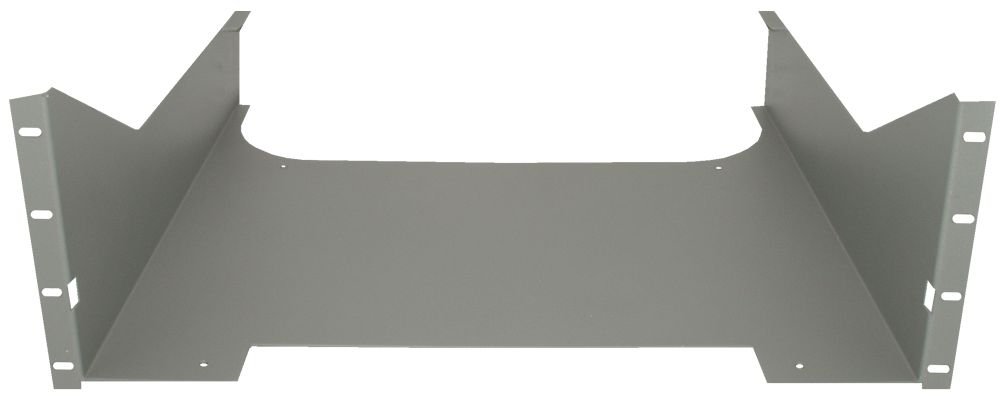

17”, 21”, 24” 30” Rackmount

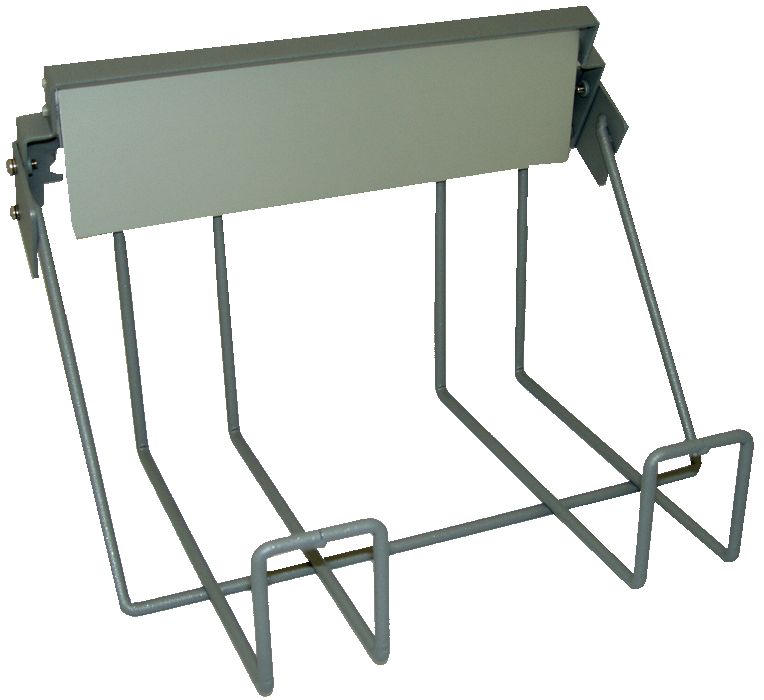

Rack or Desk Output Basket

Rack Input Basket
